Soildrops Controller Installation Tutorial

Estimated installation Time: 15 mins

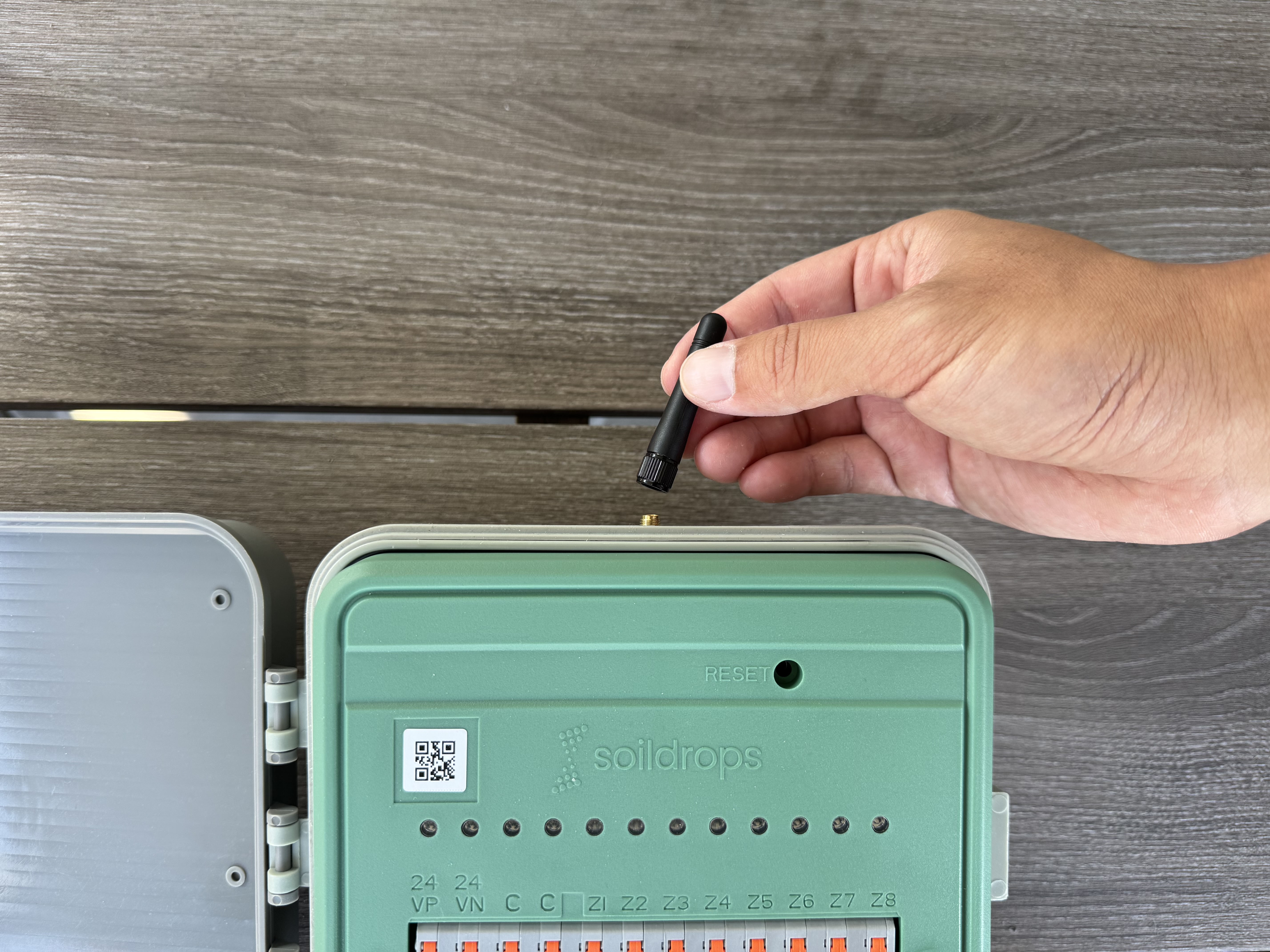

1. Twist on the included antenna securely.

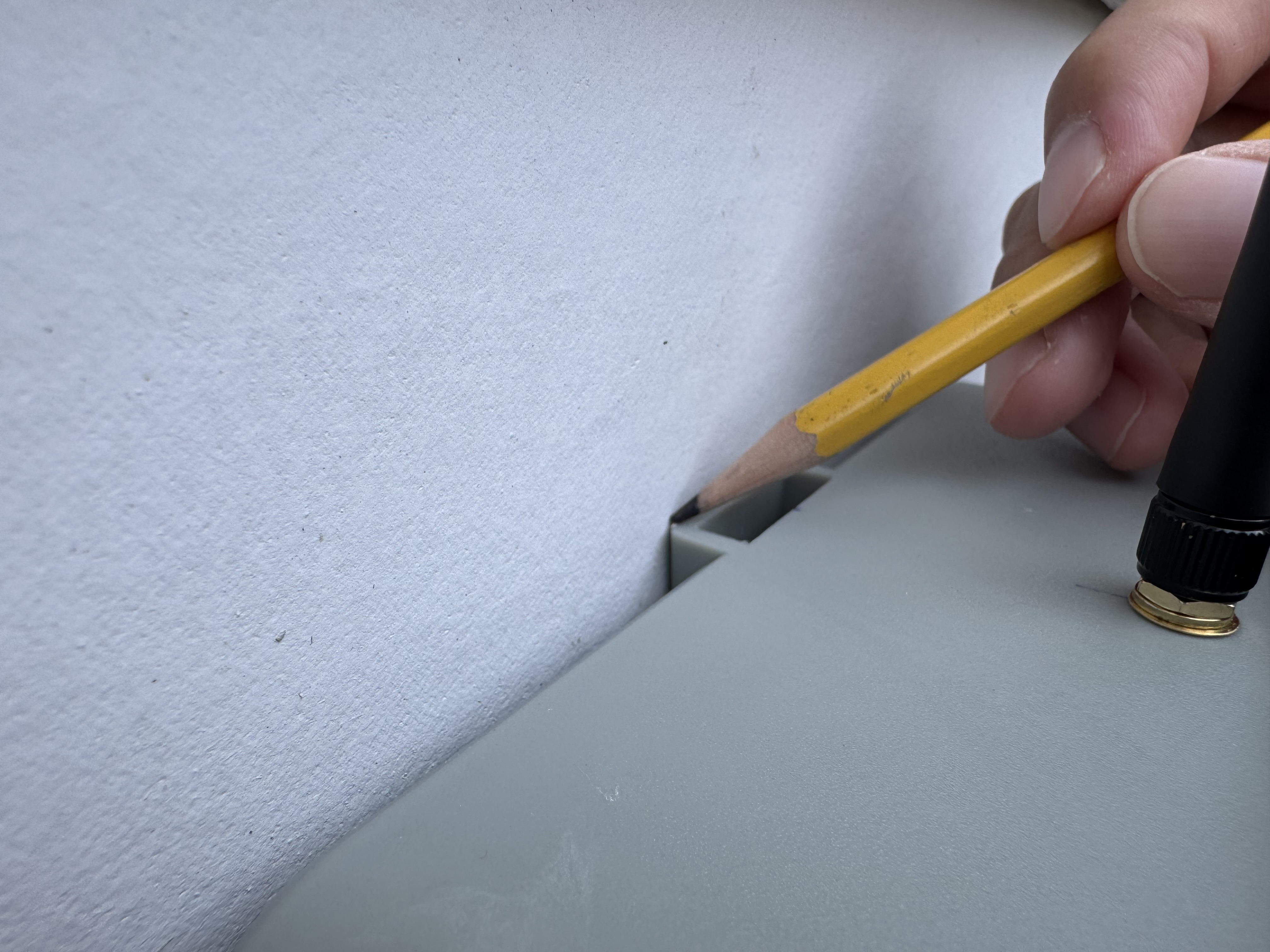

2. Choose an ideal location, ensuring the power cord and irrigation wires can reach the controller. Mark the top with a pencil.

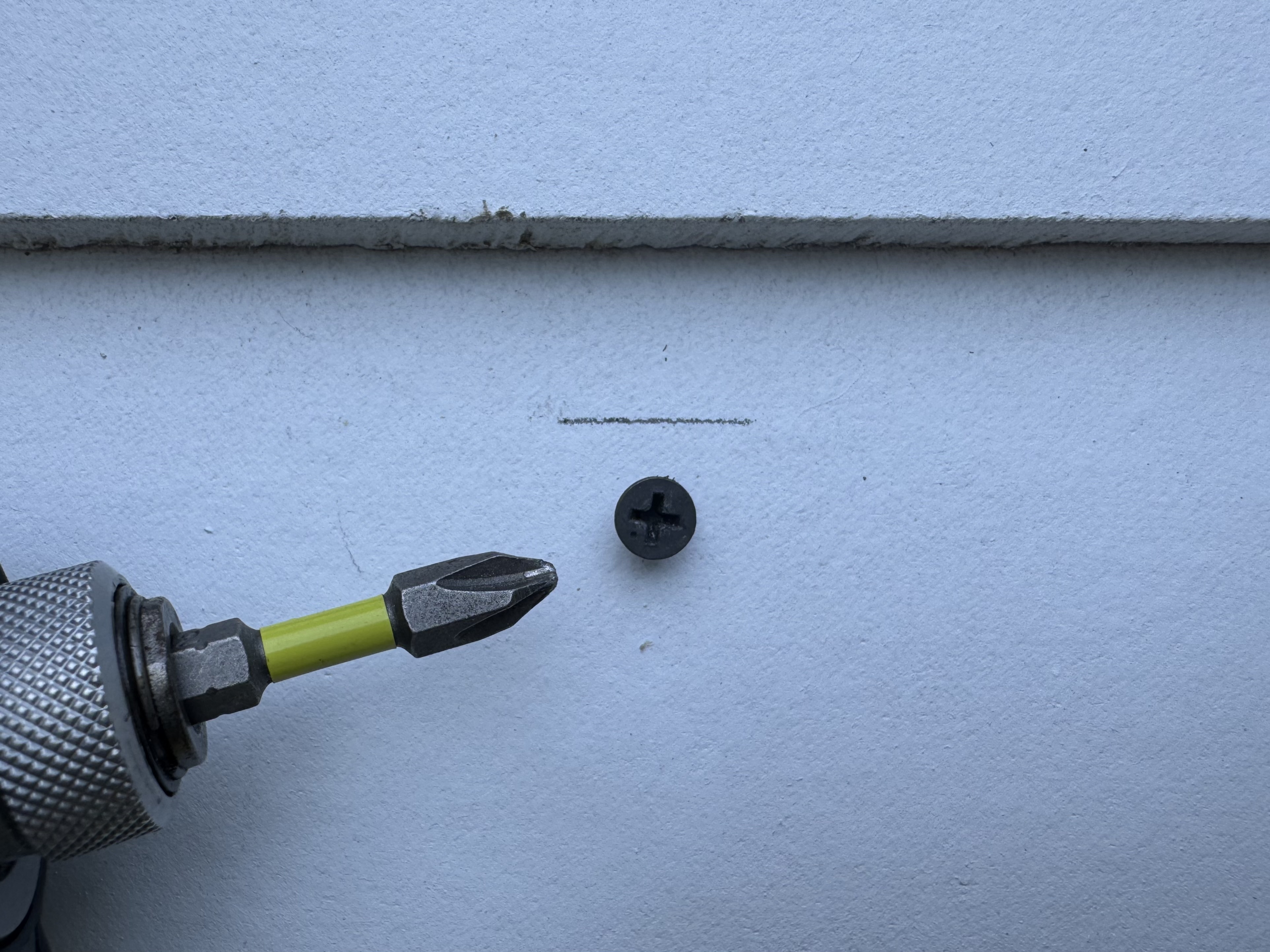

3. Use a 3/16-inch bit to drill the included screw through the drywall 3/8” below the mark, leaving 1/4” out for hanging.

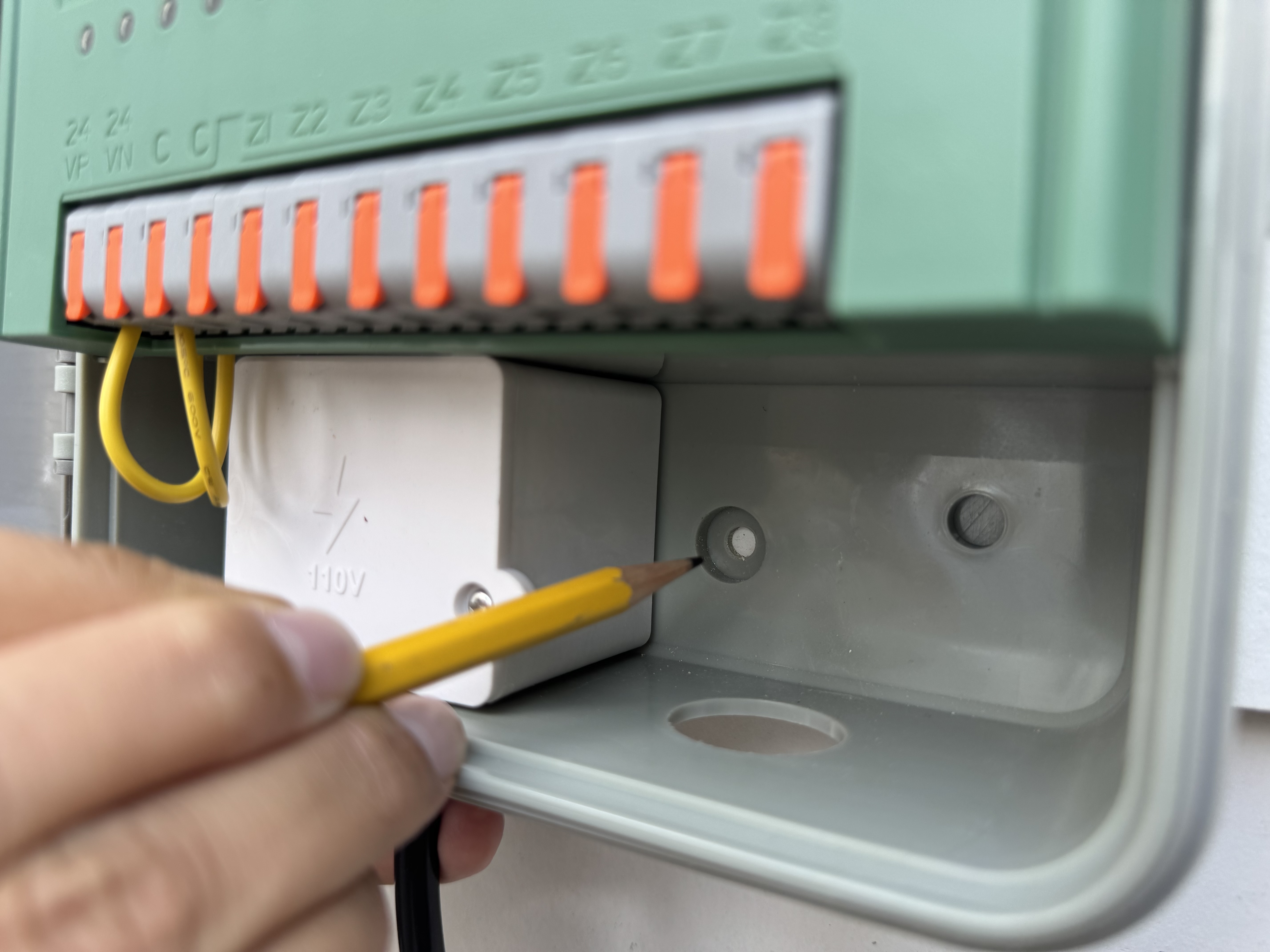

4. Hang the controller on the screw, ensure it’s level, and mark the spot for the second anchor with a pencil.

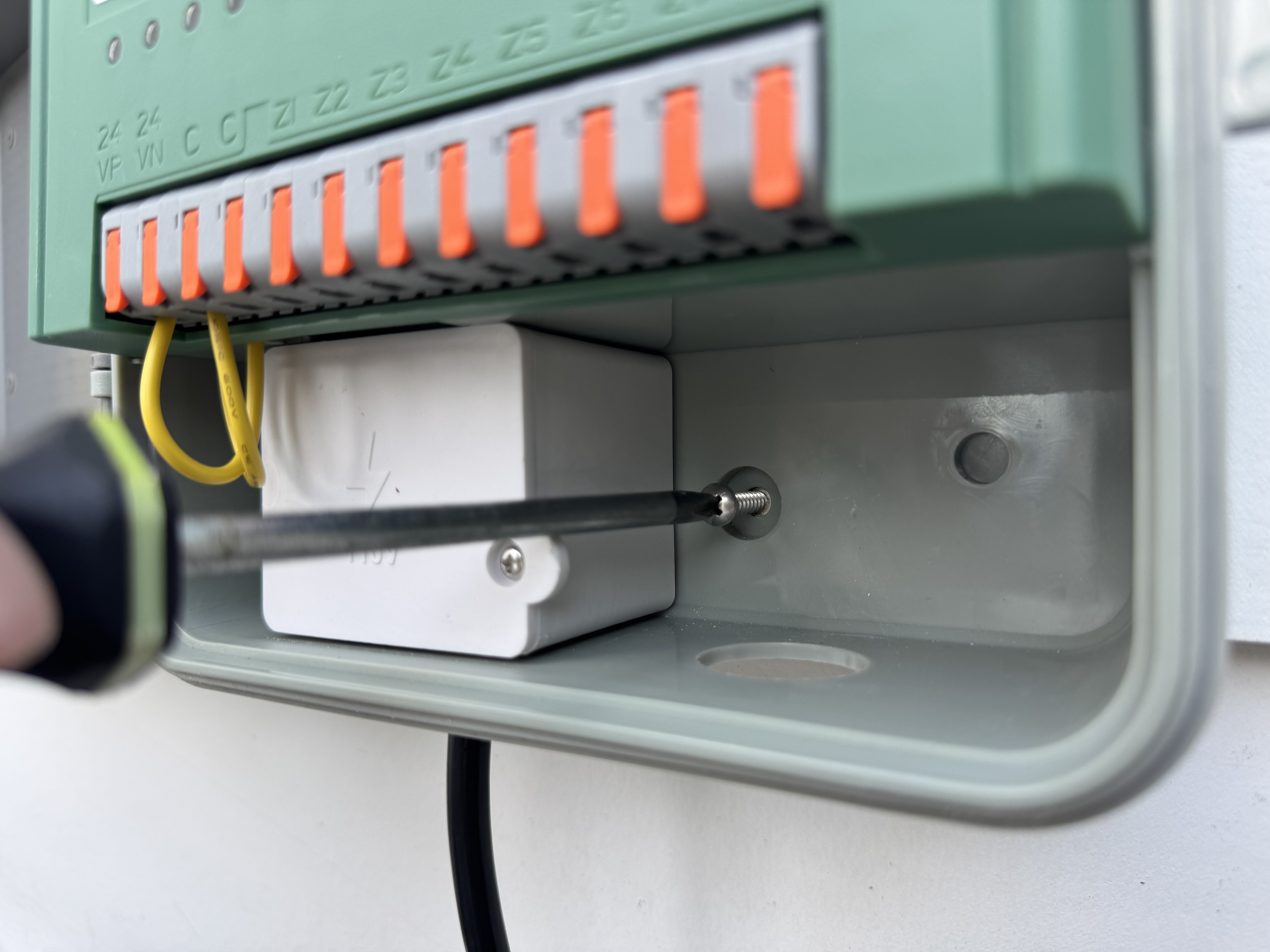

5. Drill a hole for the second anchor and use a Phillips screwdriver to tighten the screw.





6. Connect Sprinkler Wires




7. Connect Power

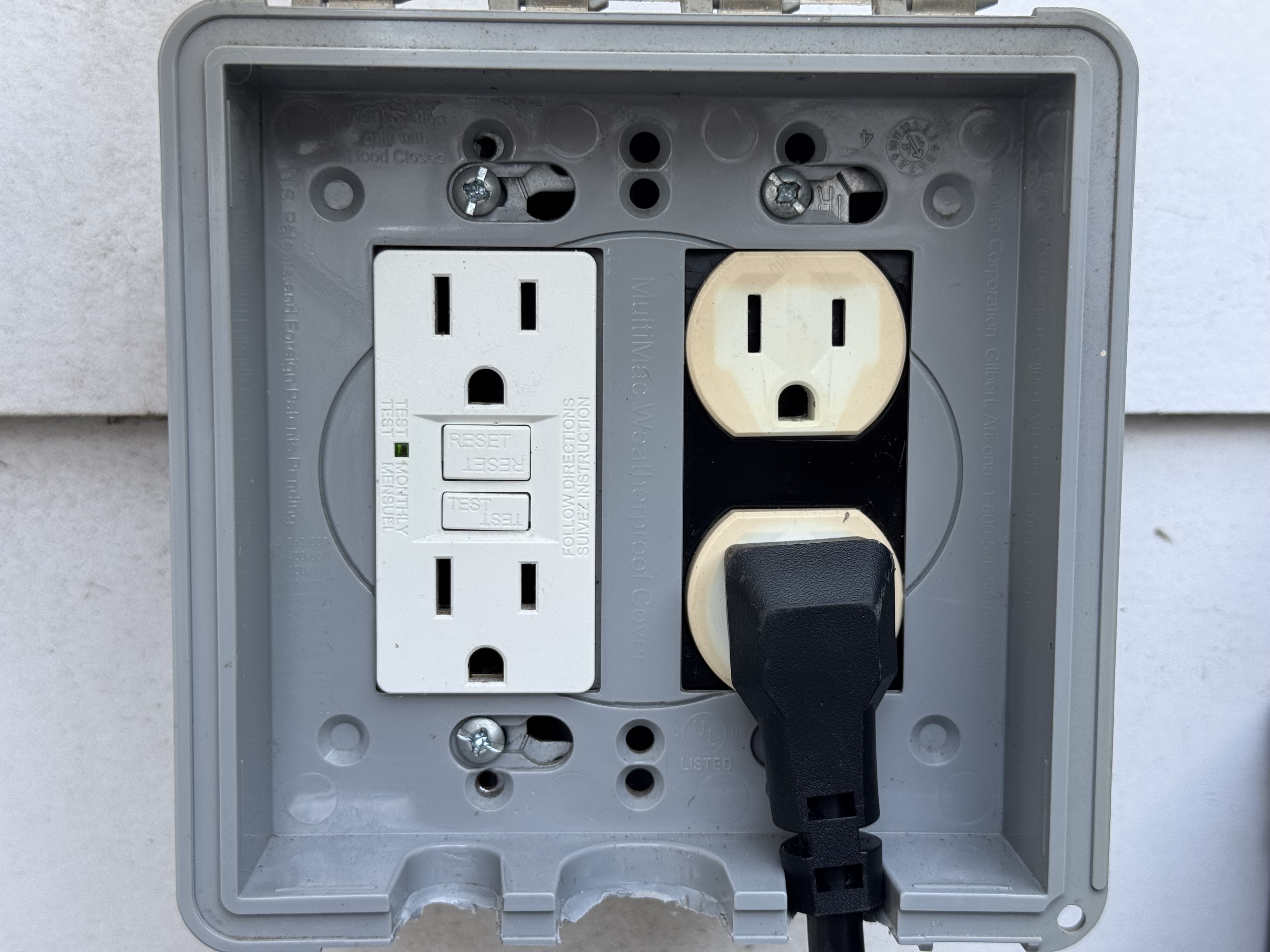

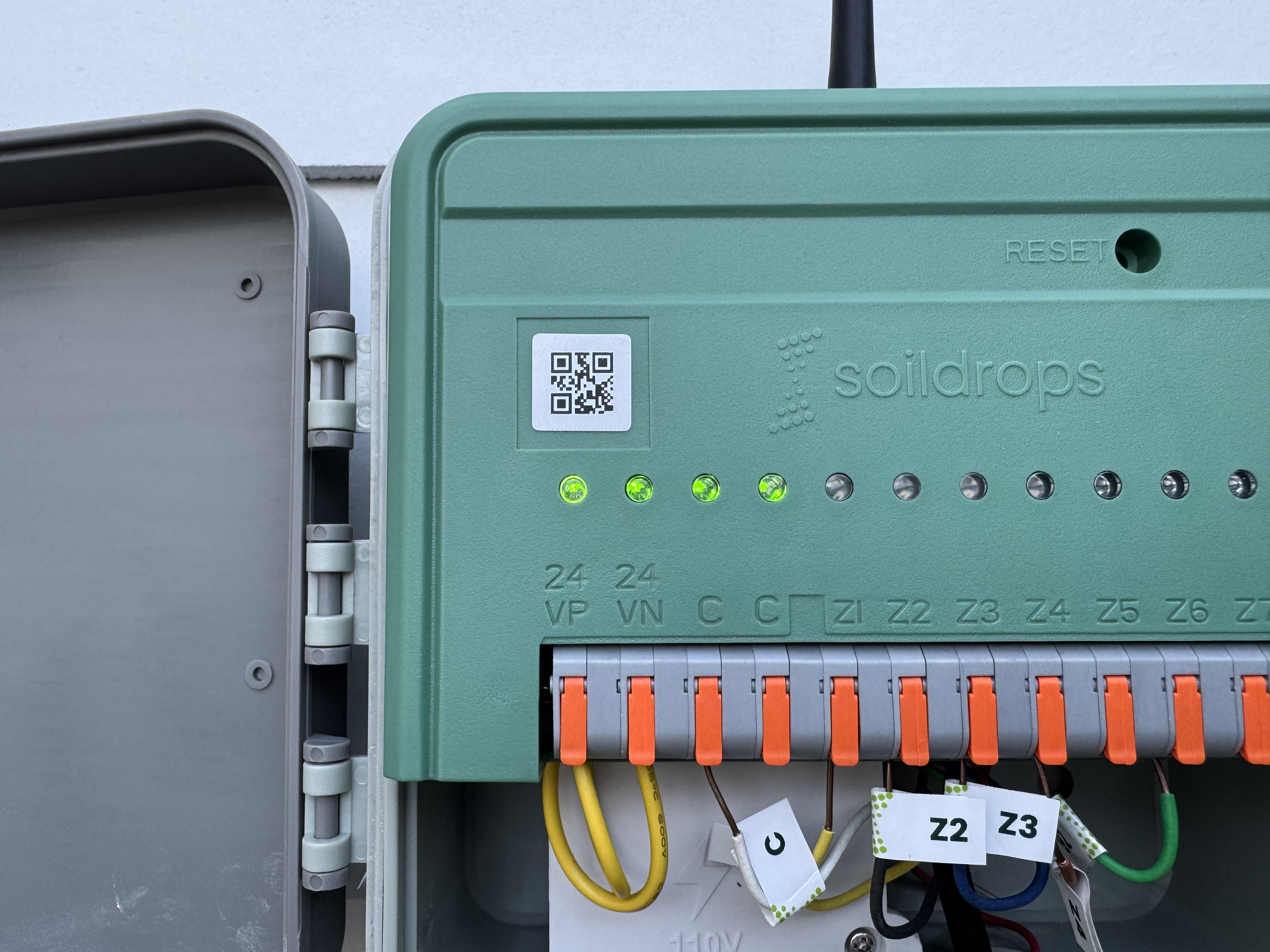

8. Plug in the power; all 4 LEDs will turn on.

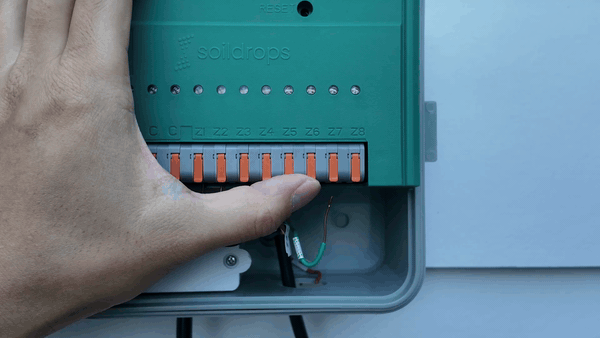

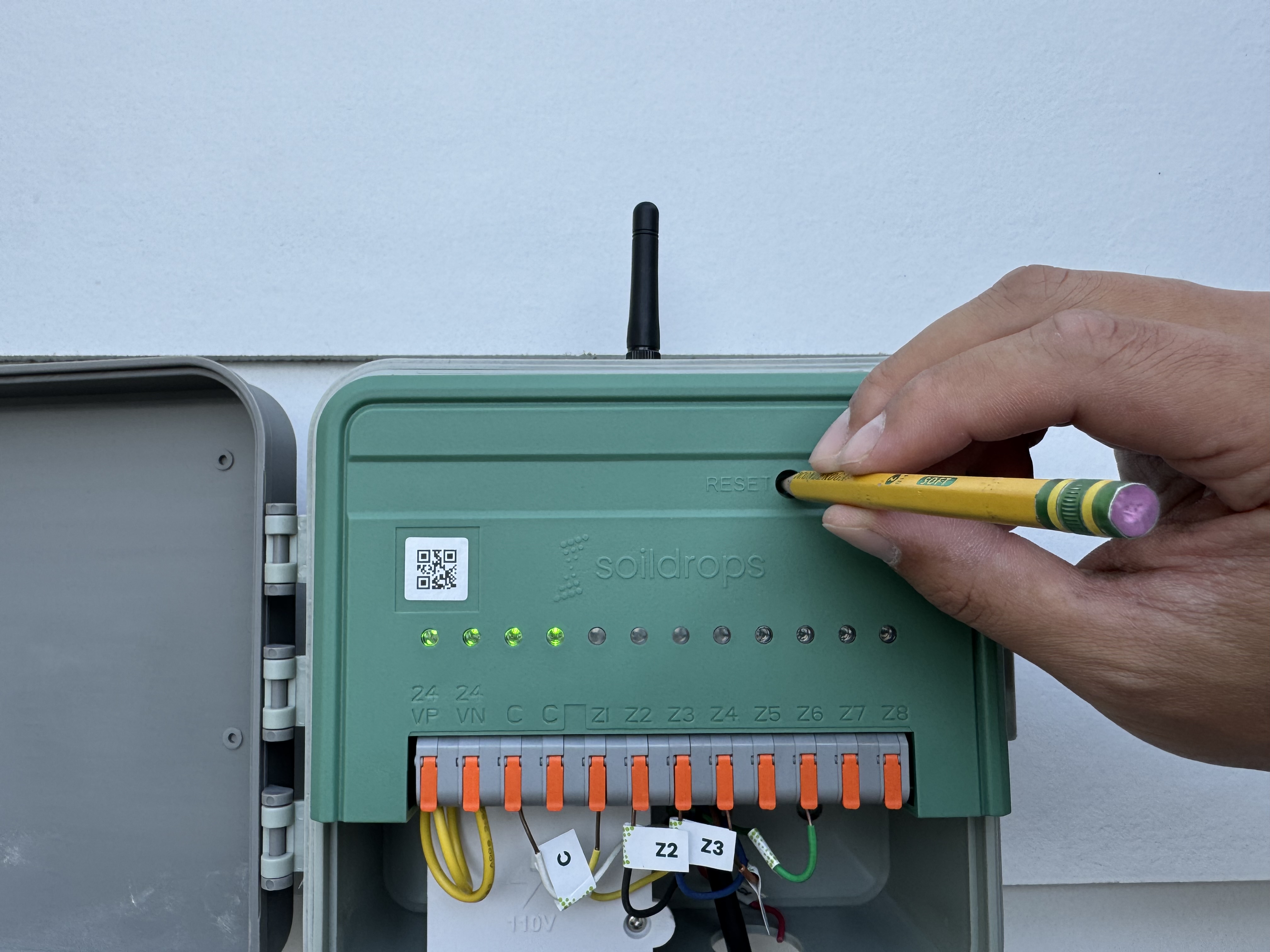

9. Press and hold the reset button for 3 seconds or until the 3rd and 4th LEDs start flashing.

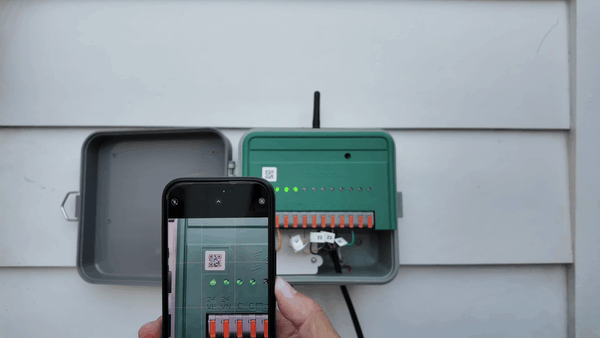

10. Scan QR code to pair
